Holding Fixtures

Our Offices

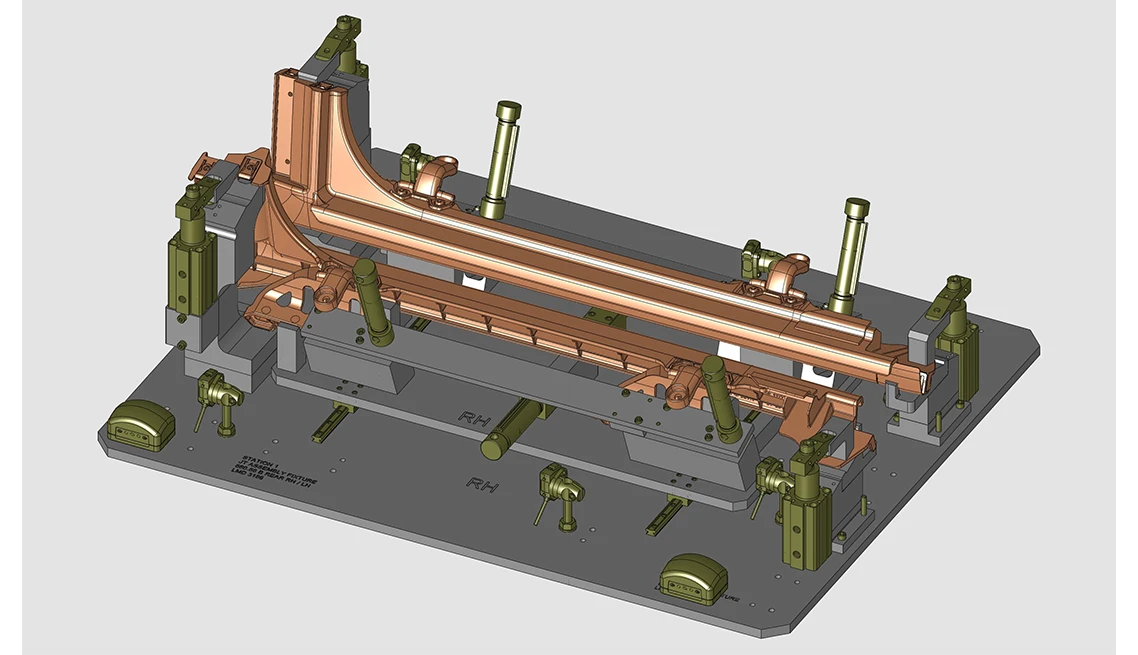

ASSEMBLY FIXTURE

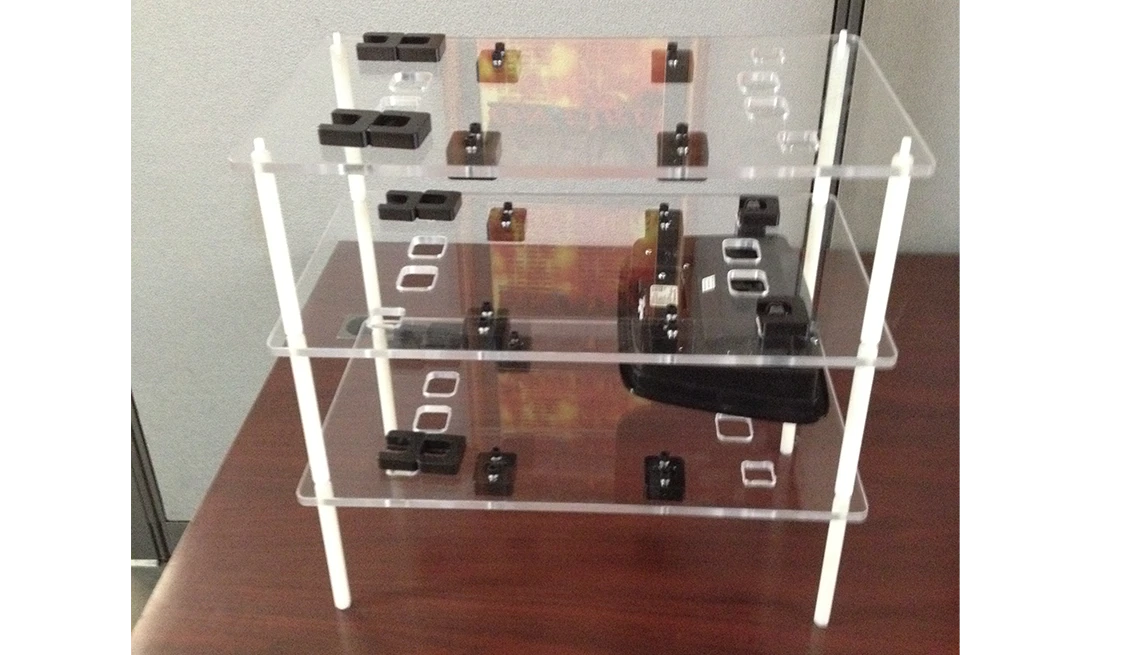

ENVIRONMENTAL FIXTURE

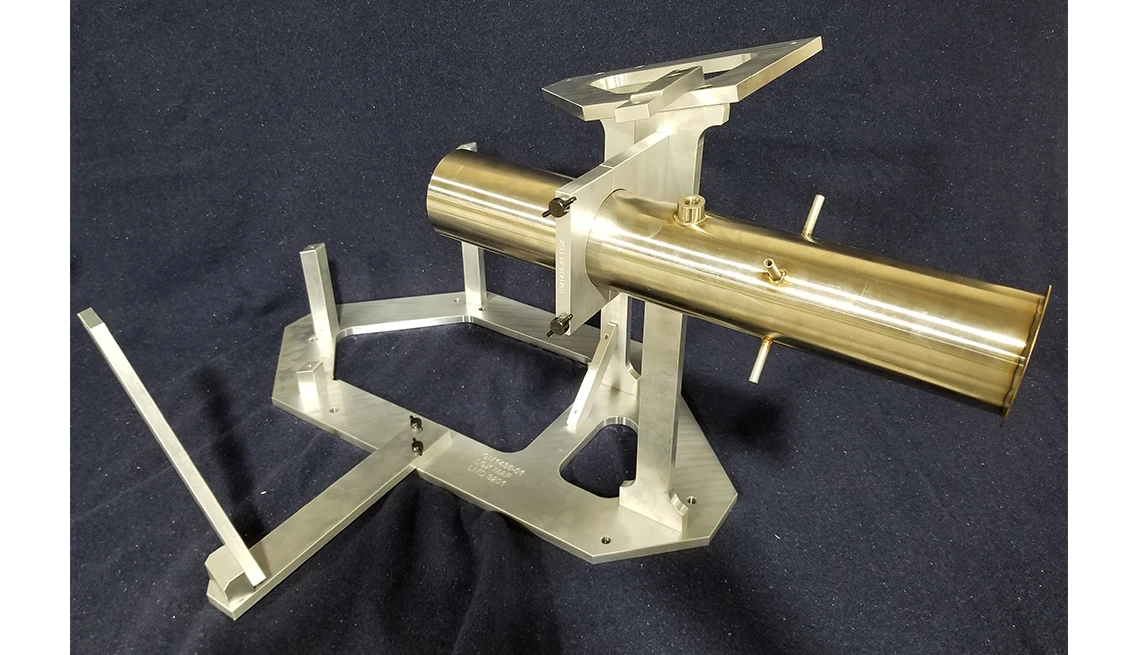

MAF FIXTURE A

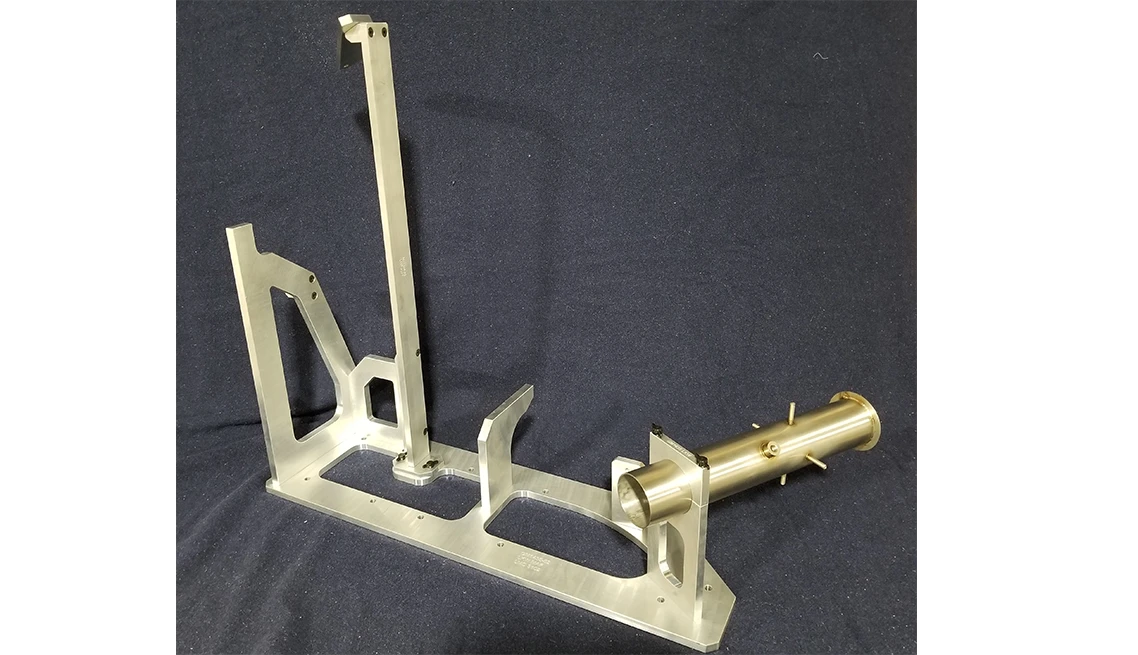

MAF FIXTURE B

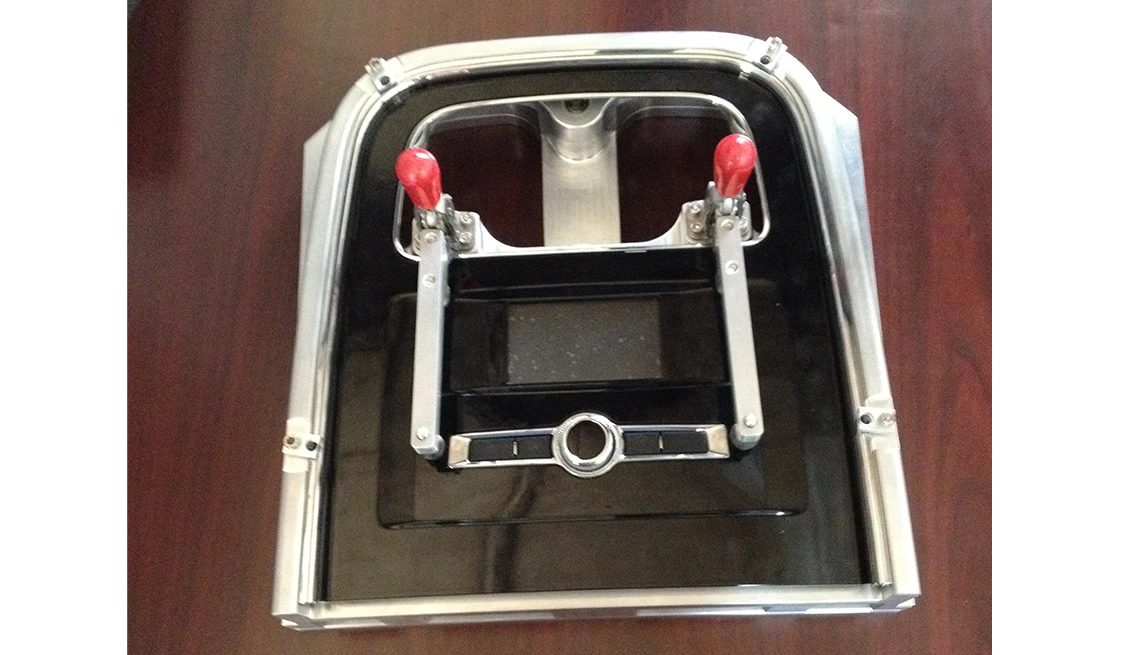

OHC TACTILE FIXTURE

CMM Holding Fixtures

CMM holding fixtures are designed to test or inspect parts to ensure they contain no imperfections, and are all identical to one another. We will design and build fixtures for parts of any size or shape.

Projects

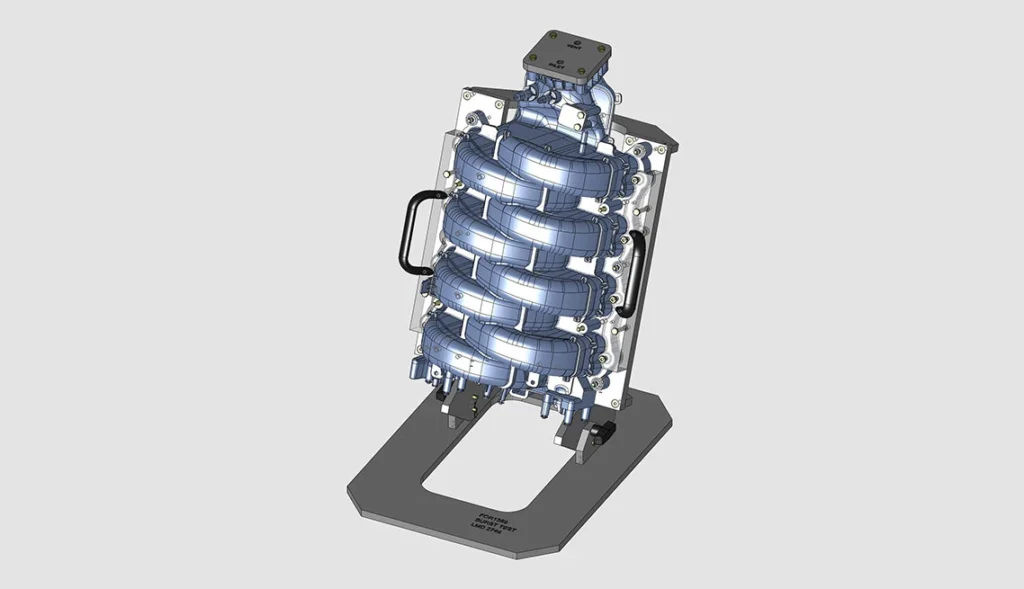

Intake Manifold Burst CAD

Intake Manifold Burst Test Fixture

A good example of a test fixture Lakeshore can manufacture is the Intake Manifold Burst Test Fixture we designed for a global leader and expert in the field of filtration, as well as innovative solutions for the health and mobility...

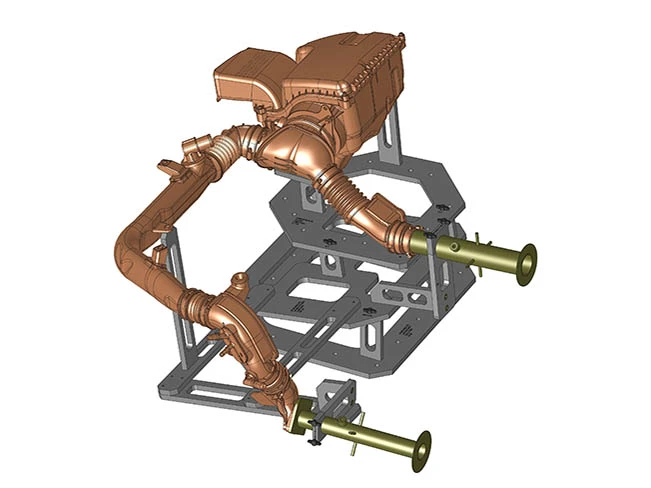

Lakeshore Twin Turbo CSD Flow Fixture

Flow Fixture

Flow Test Fixtures are used to hold the test sample steady in a particular position, to align and mate up the measurement tube with the Flow Measurement Machine. These are also used for other various tests that require the sample...

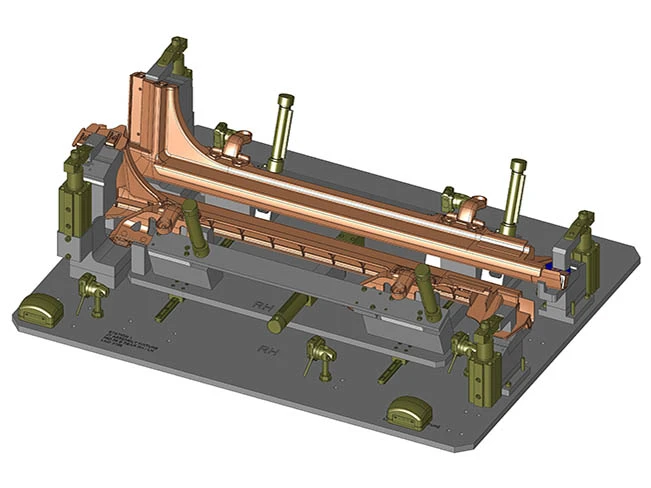

LAKESHORE ASSEMBLY FIXTURE

Assembly Fixture

Assembly fixtures orient and locate individual parts on their critical features while attaching, to ensure the part assemblies fit and function in the end use. In this project, there were 2 fixtures (or Stations) to complete the assembly properly (Station...
