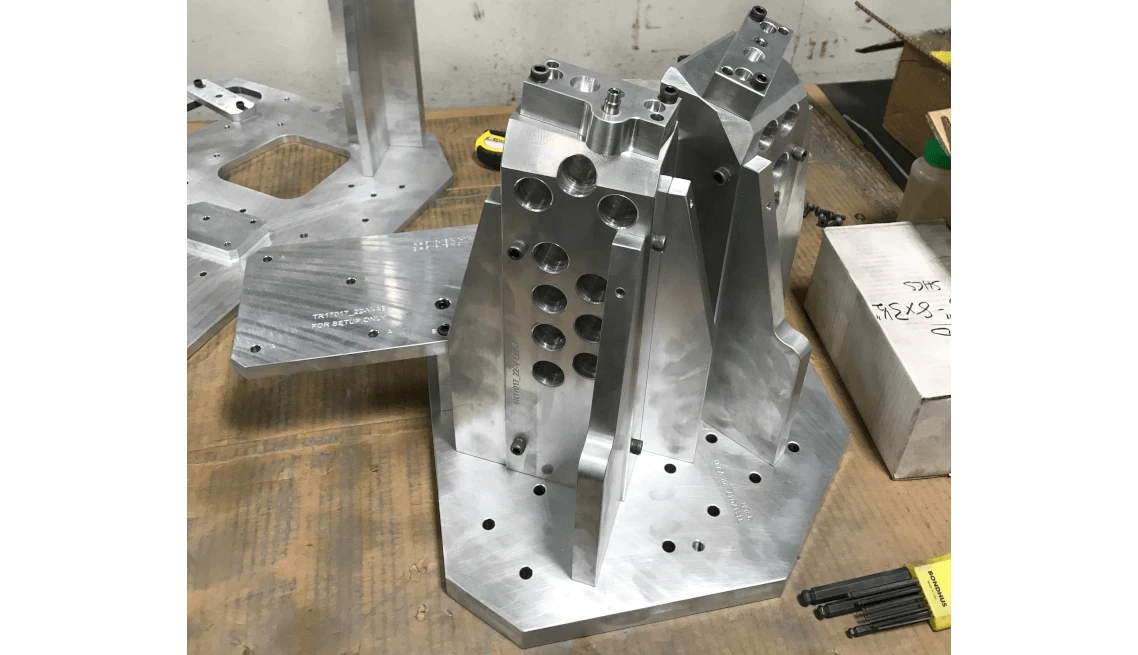

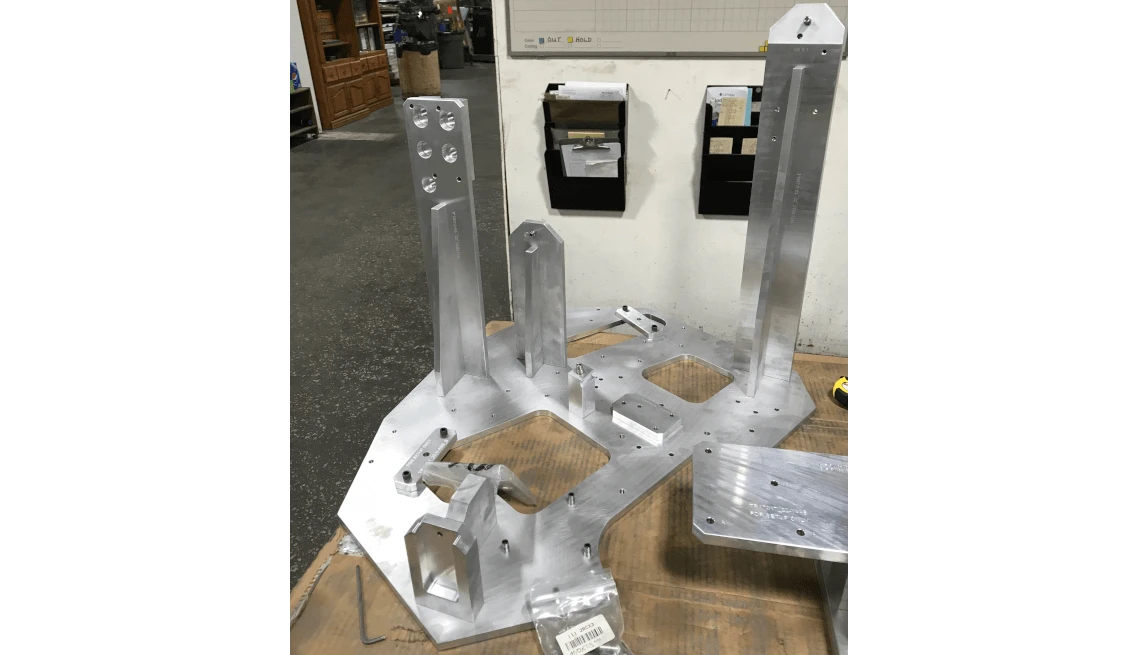

Vibration Test Fixture
Vibration Test Fixture
Vibration Test Fixture
Vibration Test Fixture

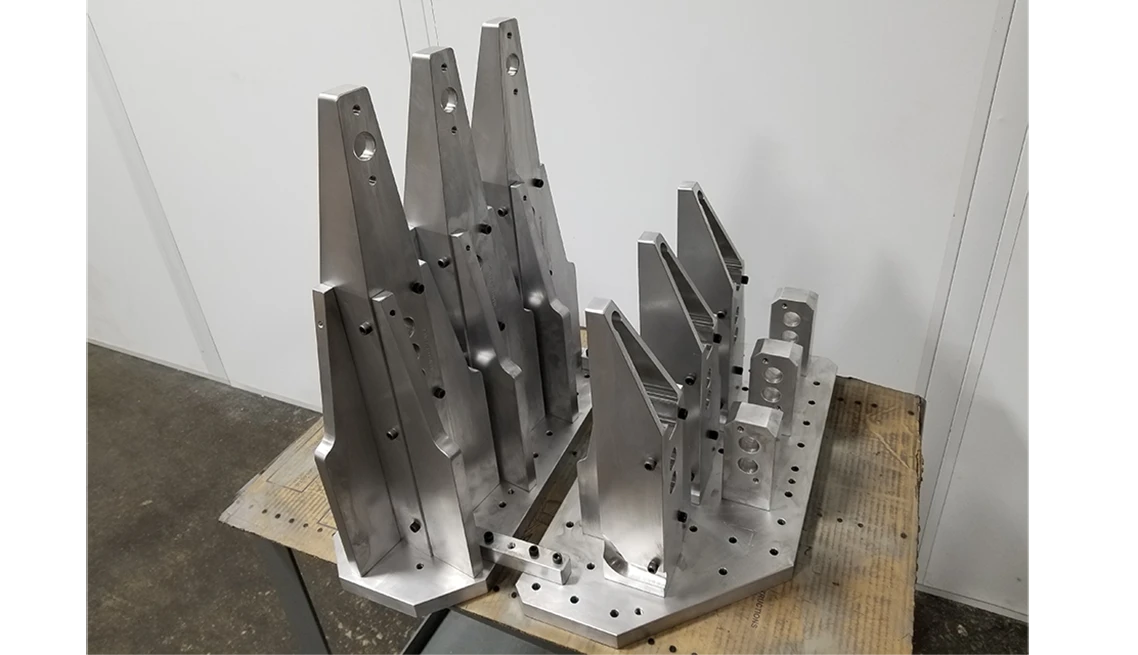

AC LINE VIBRATION FIXTURE B

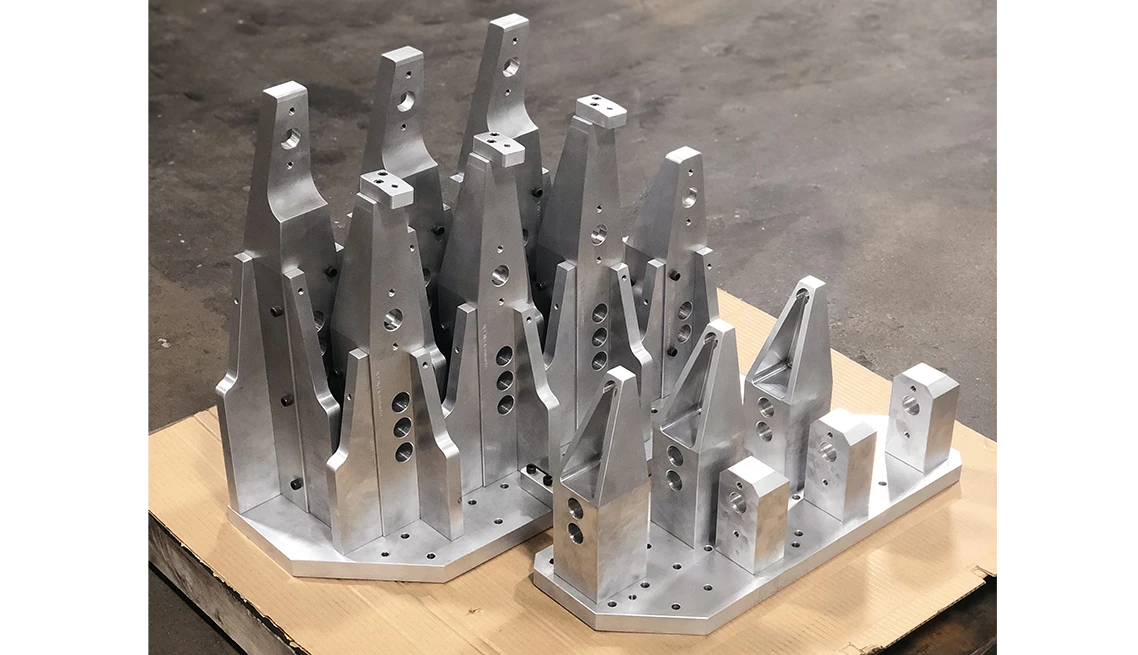

AC LINE VIBRATION FIXTURE

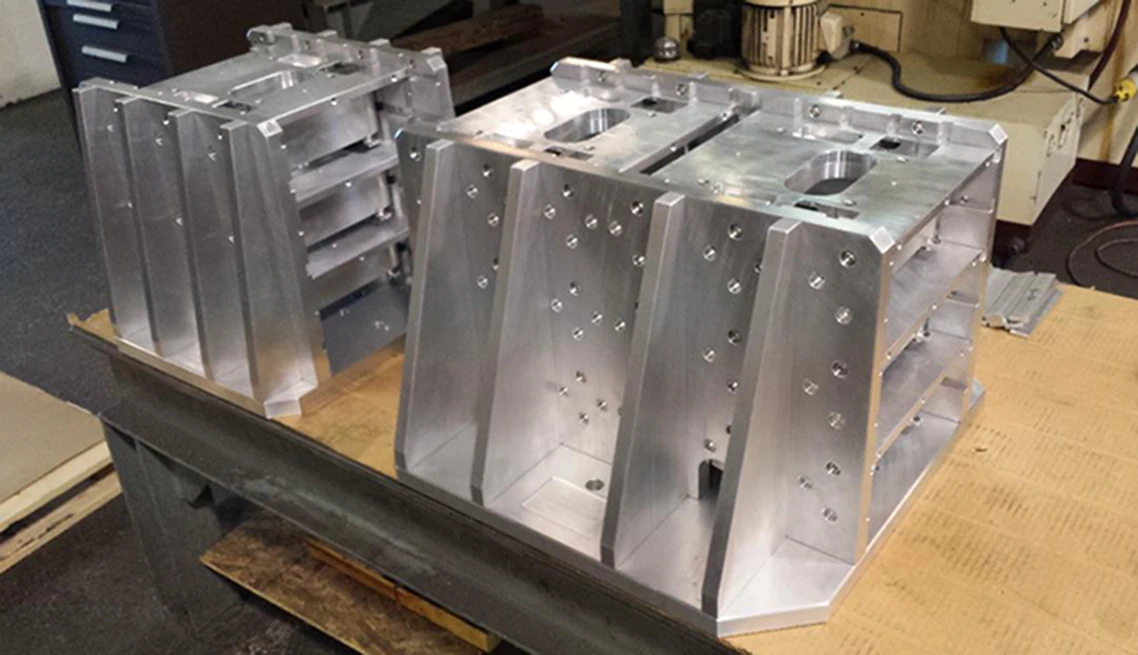

MULTI SAMPLE VIBRATION FIXTURE

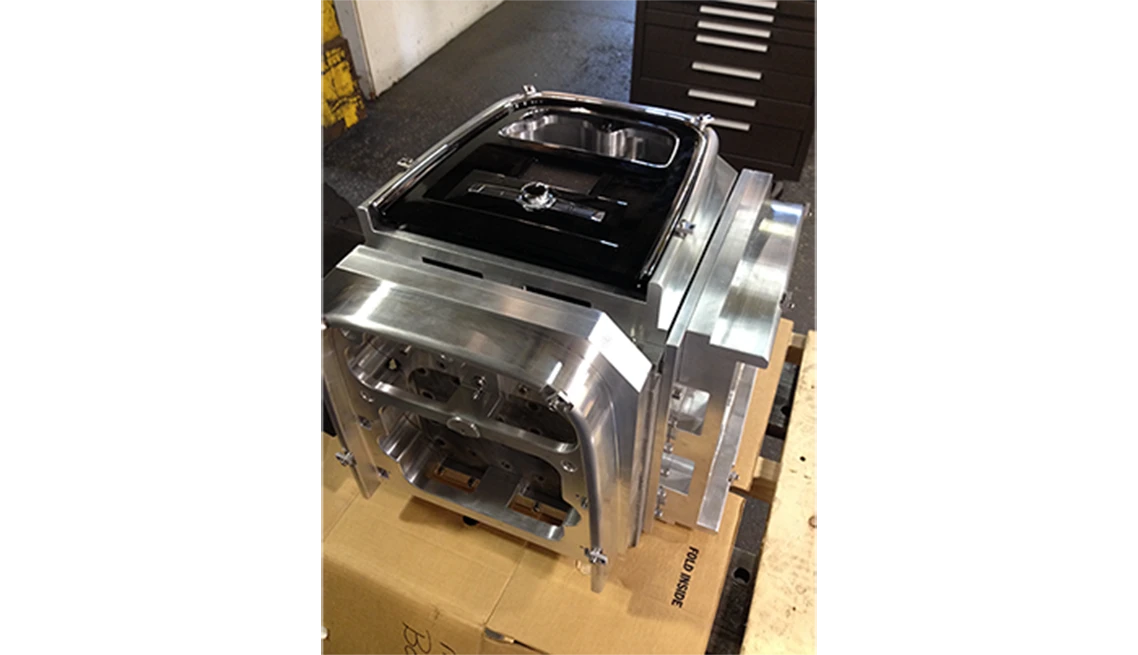

OHC VIBRATION FIXTURE

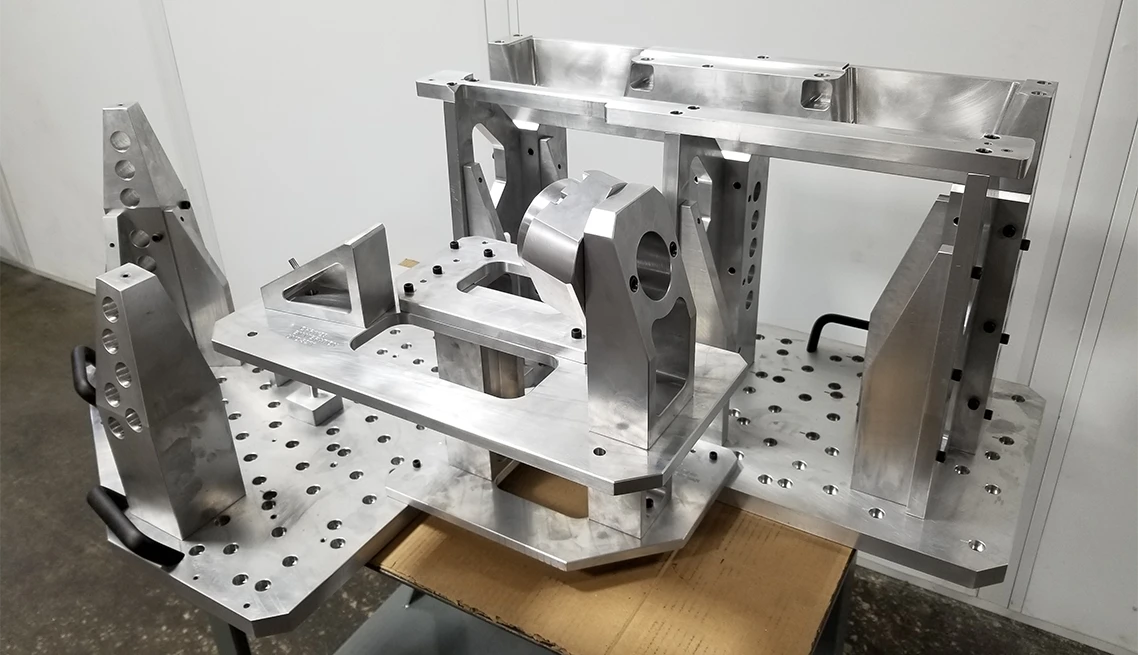

AIR INDUCTION SYSTEM VIBRATION FIXTURE

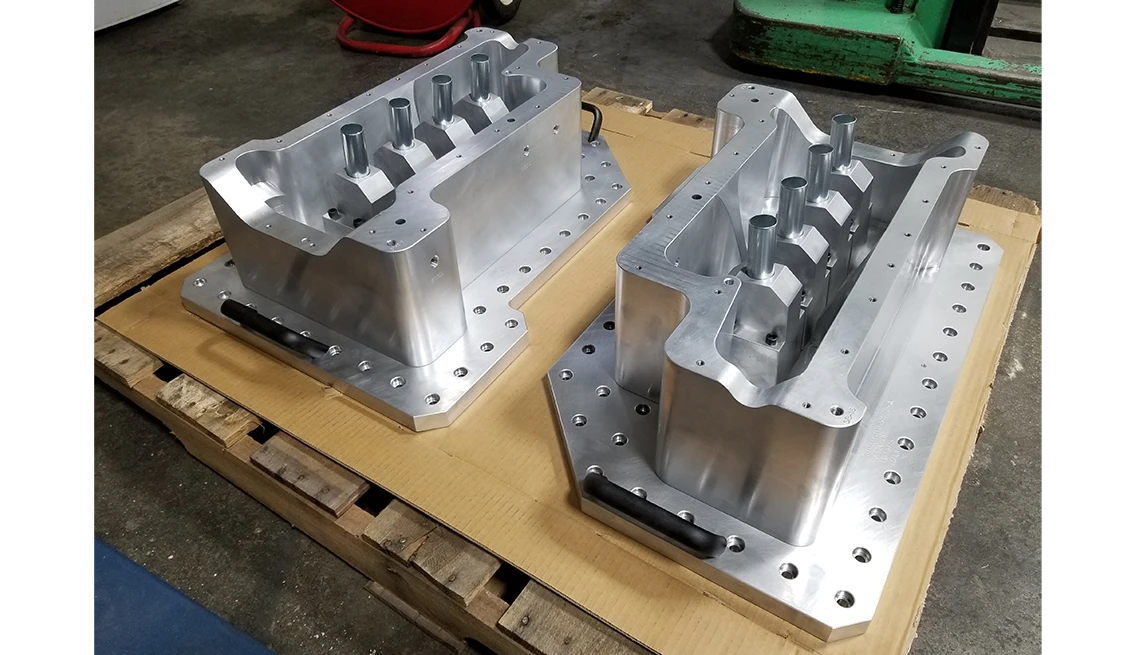

CAM-COVER-VIBRATION

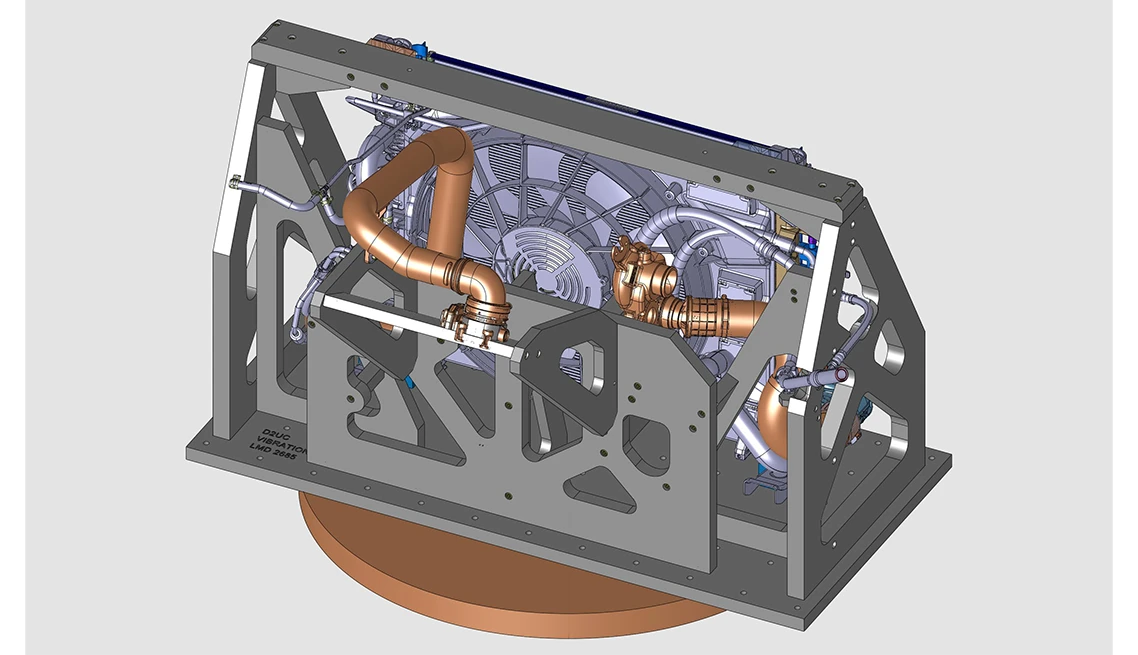

RADIATOR VIBRATION

Vibration Test Fixtures

Vibration testing helps determine if your products or parts will continue to function when put through intense use. Lakeshore provides rigid and lightweight fixtures for vibration testing that are custom built according to customer supplied assembly models.

Projects

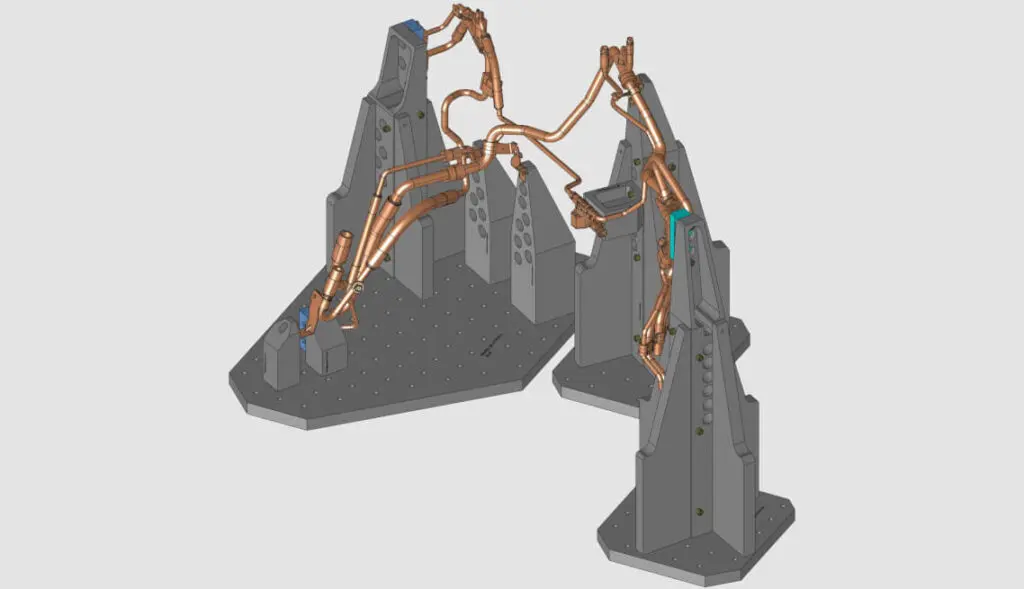

IHX Vibration CAD

IHX Vibration Test Fixture

Lakeshore can provide solutions for projects with specific and challenging requirements. One project we accepted from a worldwide automotive company required us to manufacture a fixture for IHX bundles. The fixture needed to create no resonance up to 650hz, and...

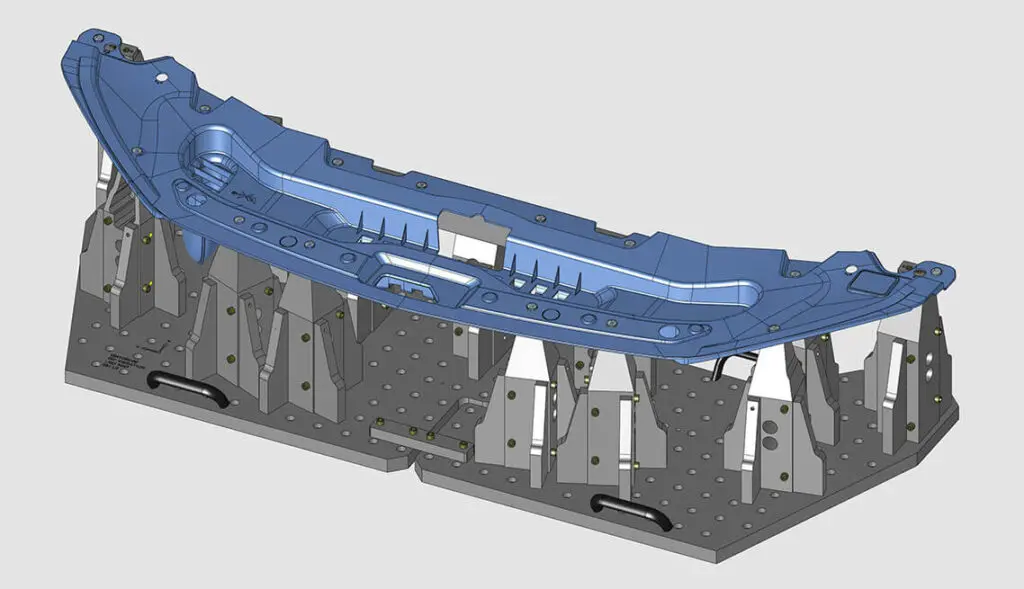

ISP Vibration CAD

Engine Splash Shield Vibration Test Fixture

Our goal was to design and build a vibratory fixture to hold the test sample in the vehicle position. The Engine Splash Shield Vibration Test Fixture had to be rigid enough, while maintaining a weight limit of 100lbs for ease...

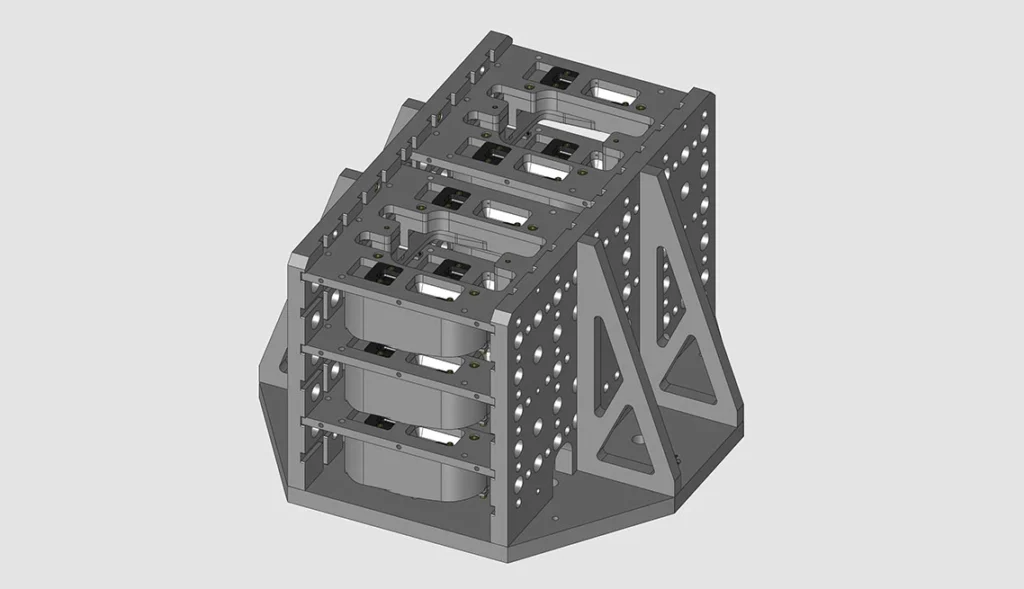

OHC Vibration CAD

Multi-Station OHC Vibration Test Fixture

At Lakeshore, we were tasked with designing and developing a multi-station, multi-axis, and reusable vibration fixture for an overhead console control unit (Multi-station OHC Vibration Test Fixture). That task was given to us by a global company that develops and...
